Berti TSB 250cm High Body Mulcher w/- Roller

Description

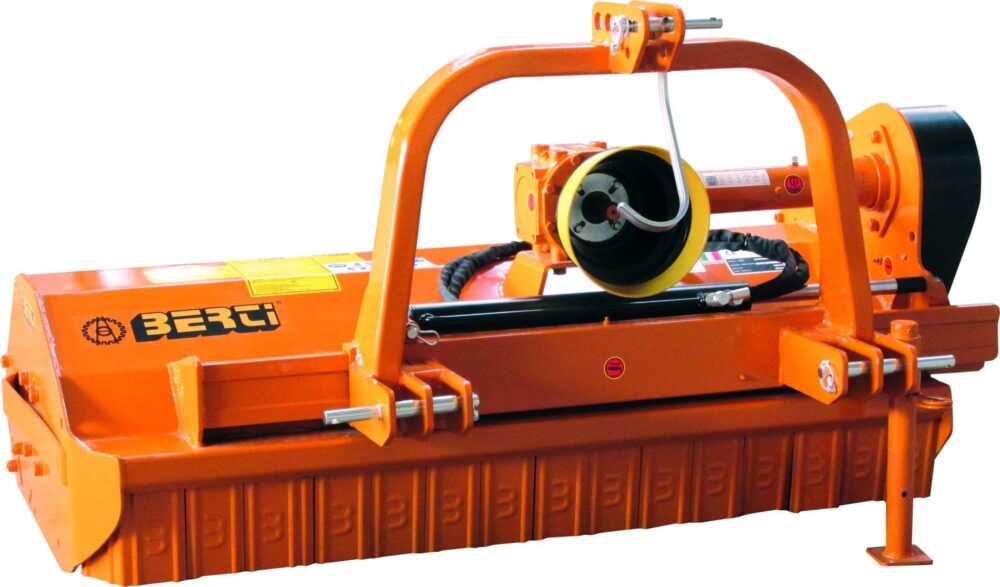

Berti TSB 250cm High Body Mulcher w/- Roller

TSB 250 Universal high-body mulcher shredder, for tractors from 50 to 140 HP. It is suited for grass, maize stalks, corn stalks, sunflowers, vegetables, sugarcane, potatoes, pasture topping and set aside applications.

Universal High Body Mulcher

Suitable for tractors from 50 to 140hp. Ideal for mulching grass, maize stalks, vegetable topping, sugar cane, potatoes and pasture topping applications.

Standard Features

• Fixed Cat. I-II, 3-point linkage.
• Adjustable 2 position Cat. I-II, 3-point linkage (TSB230).
• Top link tie bar.
• Rear adjustable discharge hood.
• Free wheel in the gearbox.
• Double skin body.
• Height adjustable levelling roller Ø 194mm, with scraper (TSB 160 – TSB 250).
• Height adjustable steering wheels (TSB 270 – TSB 300).
• BERTI heavy duty Ø 10mm “Y” flail with Ø 8mm center straight blade.
• Counter-blades forged, bolted.
• PTO 540 rpm (TSB 160–250).
• PTO 1000 rpm (TSB 270–300).
• Heavy duty PTO driveshaft (all models except LS) 1”3/8 6 spline).
• Accident prevention and protection guards to EC directives.

NOTE: LS Models – The TSB180LS, TSB200LS and TSB230LS models are with special long skids (no roller) “Y” flail, standard (without center blade). 540 rpm gearbox, PTO shaft and rotor, designed for pasture topping. All other specs as per above.

Options

• Skids.
• “T” hammers (in lieu of blades, factory fit only).
• (2) steering wheels TSB160-230 (in lieu of roller).
• (2) steering wheels TSB250 (in lieu of roller).

About Berti

The experience of over 50 years in the manufacturing of farm implements makes it possible for Berti Company to offer a complete range of technologically advanced implements, to serve more and more demanding and specialized agriculture.

The high quality, the sturdiness and the reliability of the products, the will to satisfy always the customer’s requirement are the reasons of the large success enjoyed by these implements worldwide.

BERTI – TSB, LAND, LAND KING- Brochure
