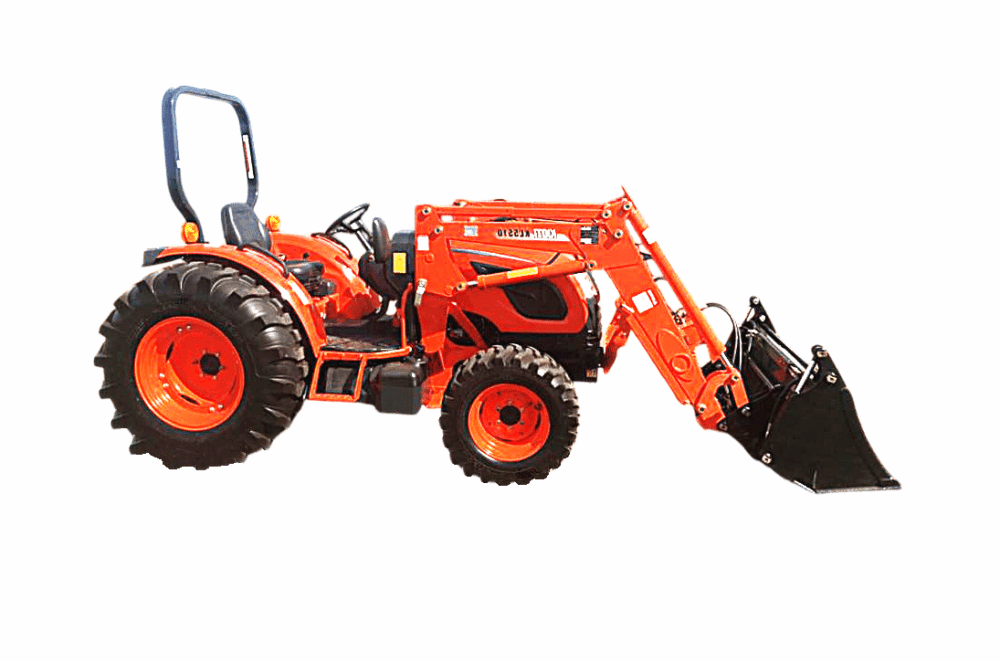

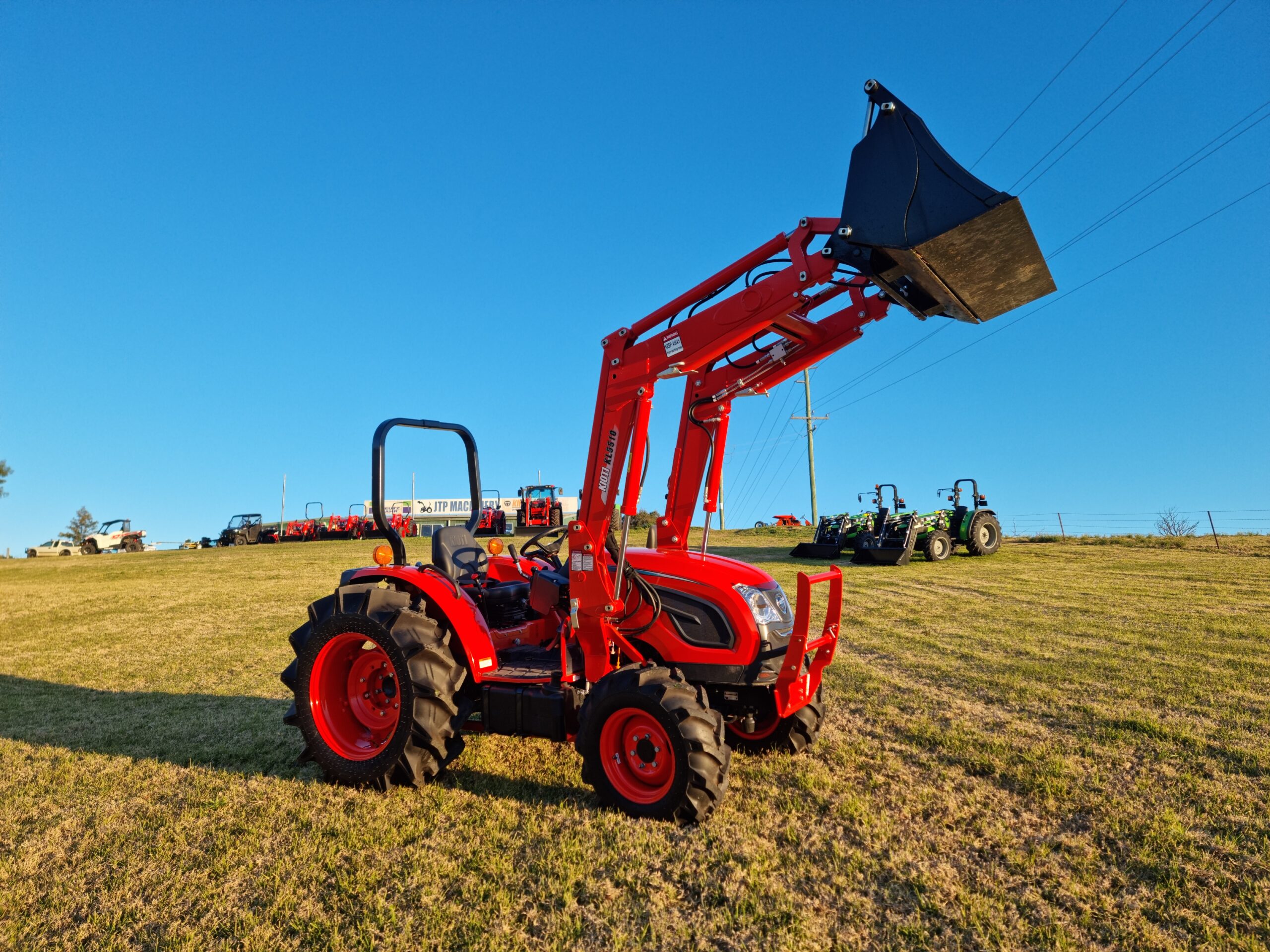

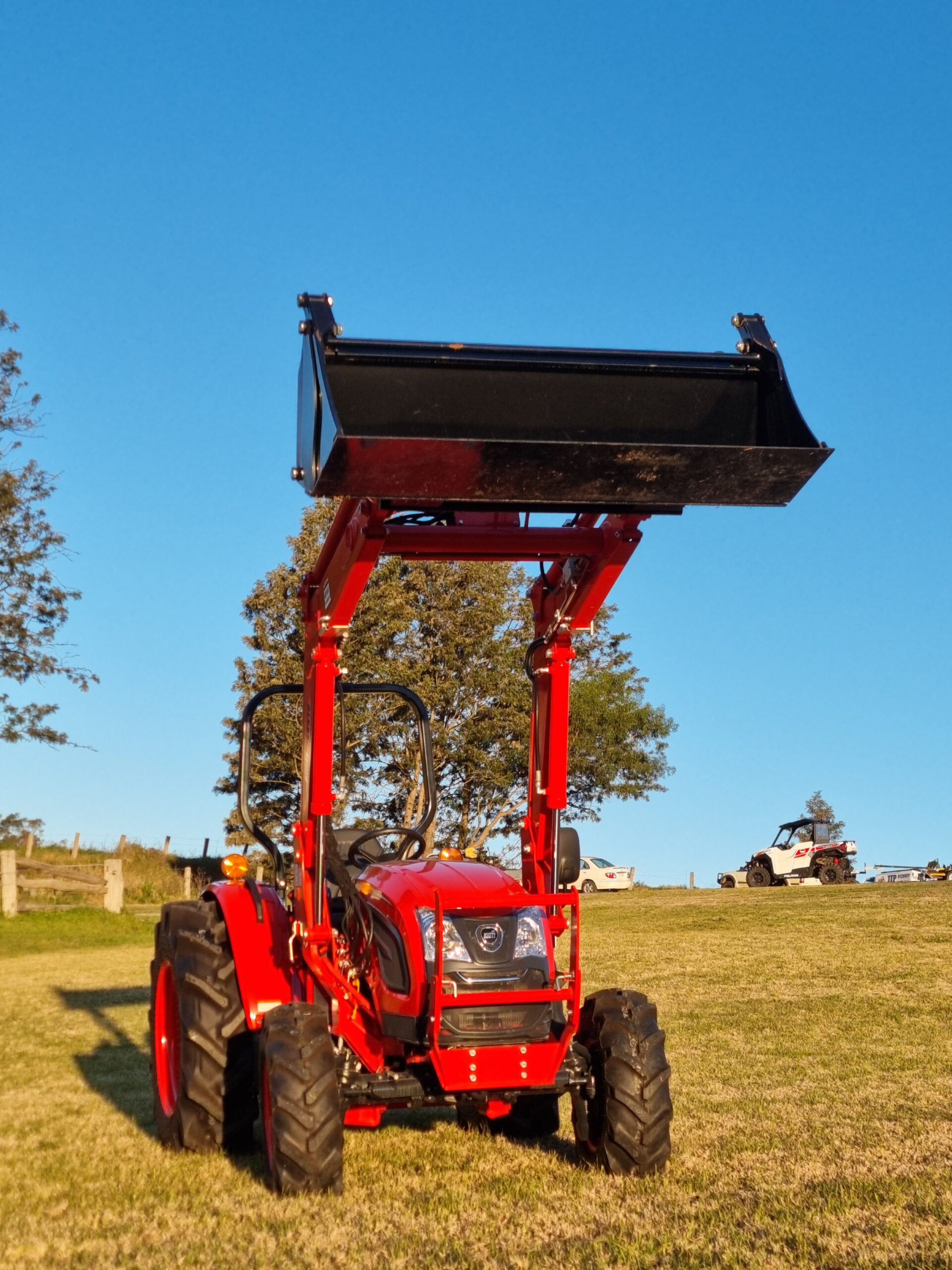

Kioti DK5820 Tractor with Loader and 4in1 fitted
Description
The all-new DK5320 and DK5820 from Kioti, available in both 53 hp and 58 hp models, sets a new standard for compact tractors. Known for its robust performance, smooth transmission, and innovative design, the DK – 20 Series is engineered to meet the diverse needs of farmers and property owners alike. Whether you’re tackling small acreage or larger, more demanding tasks, these tractors deliver both power and versatility.
With a new 16×16 transmission and synchronised shuttle, the DK – 20 Series is the answer to smoother shifting, increased operational efficiency, and enhanced versatility, making it the ideal solution for a wide range of farming tasks and property management needs.
- Manual Transmission
- 4WD
- High Ground Speed
- Power Steering
- Flat Working Platform
- Hydraulic Remotes (STD)
The DK 20 series tractors are a robust and simple model without skimping on the important features.
More Info
Specifications
Engine
- Daedong 4B243DL-A 4B243DTL-A (5820)
- Liquid Cooled 4 Cylinder Diesel
- 2435 cc Displacement
- 53 HP @ 2600 rpm (DK5320)
- 58 HP @ 2600 rpm (DK5820)
- 45 Litre Fuel Tank Capacity
Transmission
- 16×16 Manual Transmission
- 4 Speed Ranges
- Rear Differential Lock
- 4 Wheel Drive
- Synchro Shuttle
Hydraulics & Linkage
- Tandem Gear Hydraulic Pump
- Manual Linkage Control
- 55.1 I/min Total Flow
- Category 1 Three Point Linkage
- 1,232 kg Max Rear Lift Capacity 610mm Behind Lift
Operator Environment
- Front Work Lights with Indicators/Brake Lights
- Step Through Platform
- Under Bonnet Muffler
- Comfort Seat with Seat Belt
- Foldable ROPS
Travel Speeds
- Speed Range 0.36 – 33.03 km/h F
Speed Range 0.35 – 32.17 km/h R
Dimensions
- Overall Length inc 3PL 3180mm
- Overall Height inc ROPS 2293mm
- Overall Width min tread 1592mm
- Wheelbase 1810mm
- Min Ground Clearance 350mm
- Weight 1,700kgs
Tyres
- Ag Tyres Front 9.5 – 16 Rear 13.6 – 26
Kioti DK5320- DK5820 Brochure JTP
